High pressure 70Mpa hydrogen storage tank

Hydrogen  cylinders for cars
high pressure gas cylinder
cylinder hydrogen
hydrogen gas cylinder price
hydrogen cylinder price

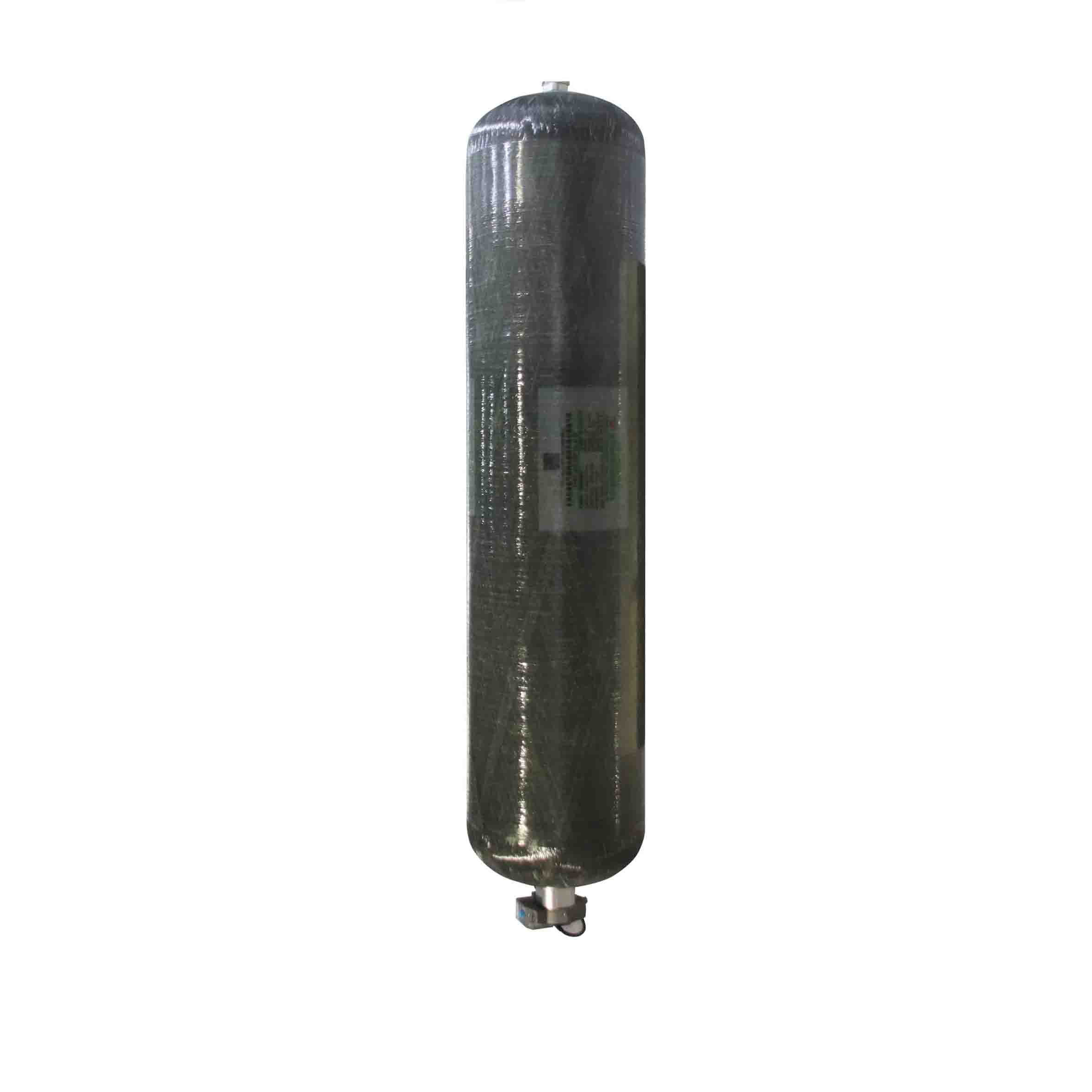

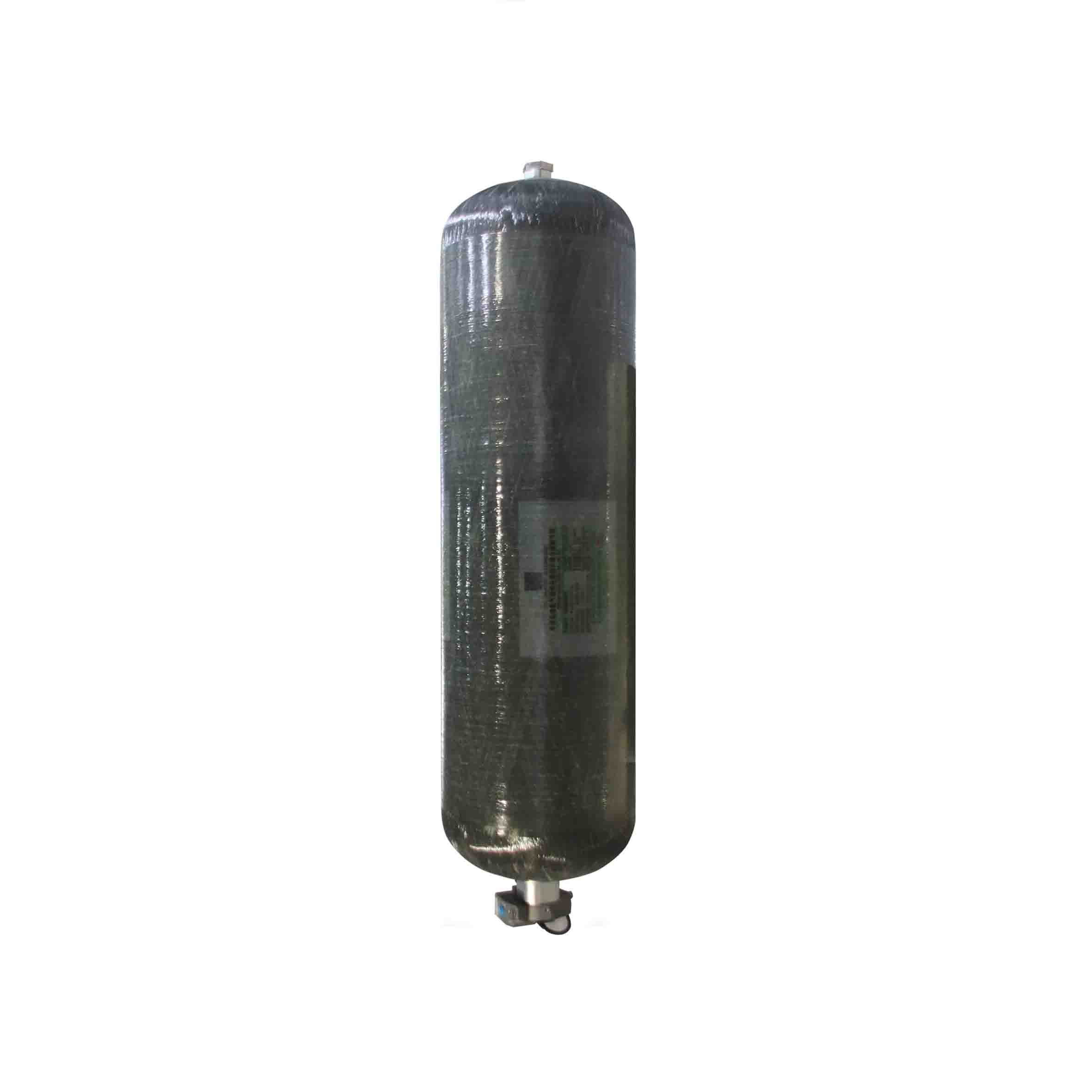

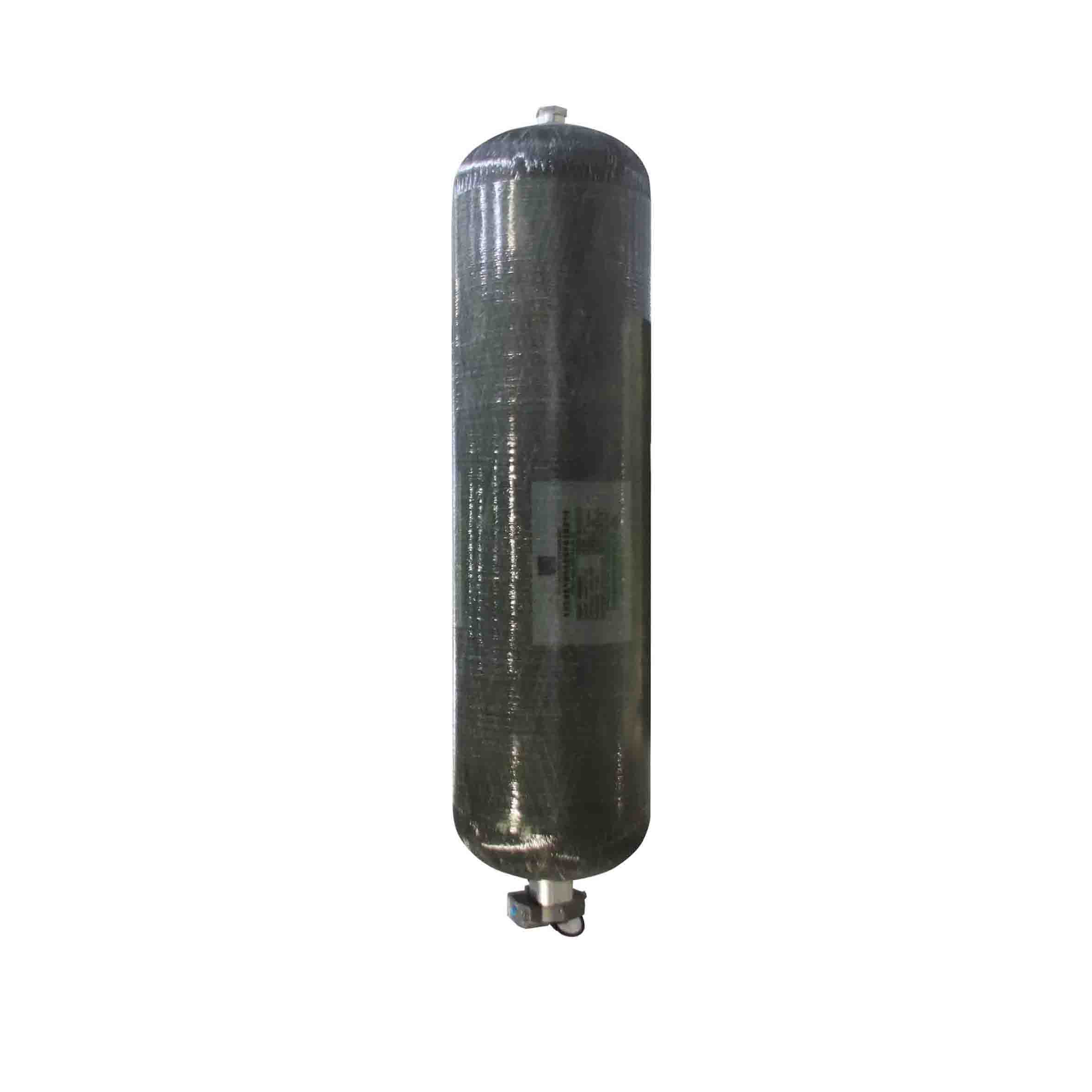

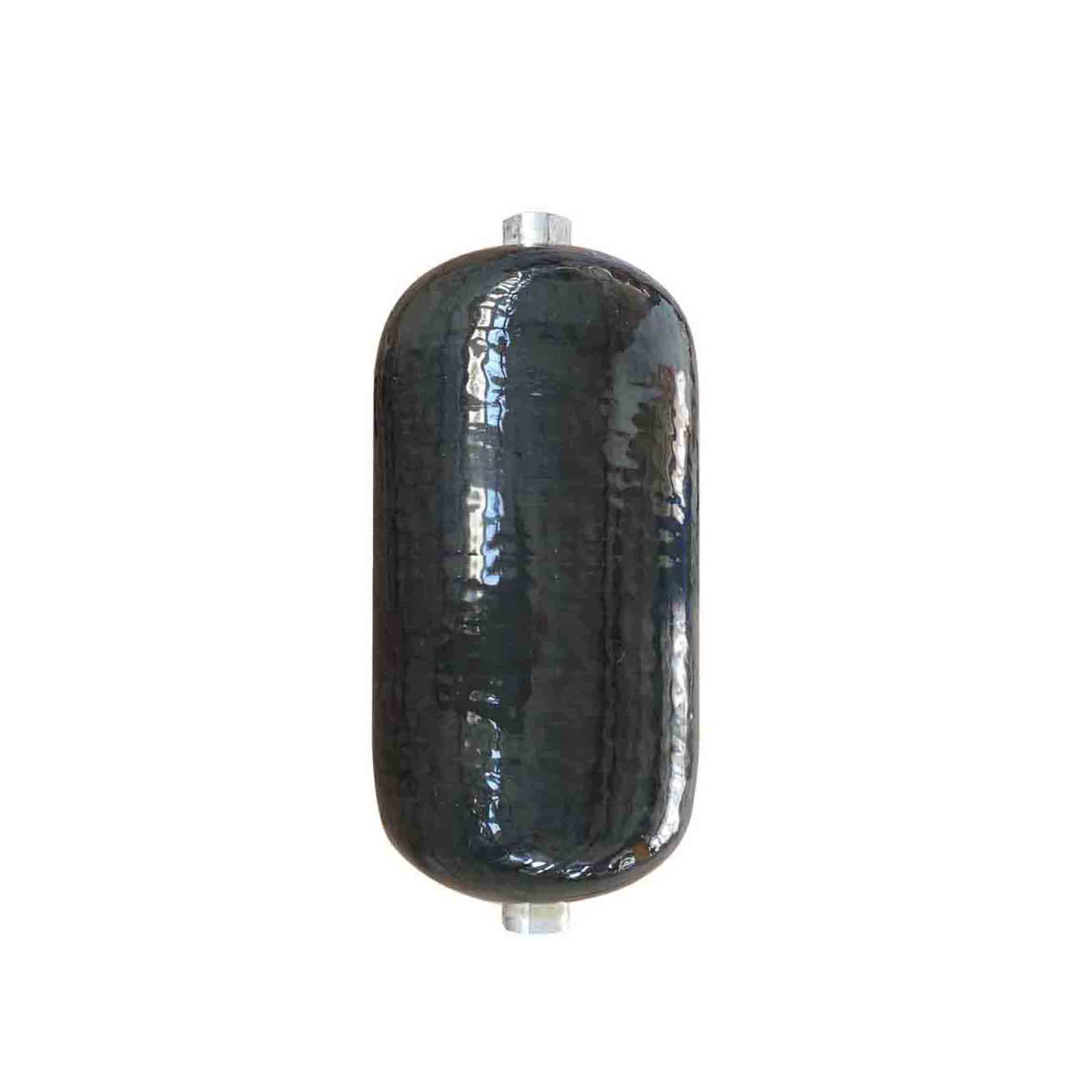

High pressure 70Mpa hydrogen storage tank

A hydrogen cylinder is a container specially designed to store hydrogen. It is generally made of a strong material to withstand the high pressure of hydrogen. The hydrogen cylinder has good sealing performance to prevent hydrogen leakage.

  • Customized water volume and standard :

    60/185/210/422
  • Norminal Working Pressure (Bar) :

    700
  • Hyd.test Pressure(Bar) :

    1050
  • Diameter(mm) :

    390/445/625

Hydrogen  cylinders for cars

Anhui Clean Energy has been dedicated to the research and development of vehicle high-pressure CHG4 composite hydrogen cylinders. We have collaborated with multiple domestic universities and research institutions to develop these cylinders. Finally, in 2024, we successfully produced high-pressure hydrogen cylinders of 35MPa and 70MPa. In order to further enhance product quality, we invested CNY 300 million in 2023 to construct an automated factory. Our goal is to manufacture 35MPa and 70MPa high-pressure hydrogen cylinders that meet both domestic and international standards by 2025, and subsequently release them into the market.





vehicle gas cylinder



Hydrogen cylinder product advantages

  • Safer, plastic liner does not exist grain boundaries, will not occur stress corrosion and hydrogen embrittlement;
  • The pressureis higher,35/70MPais widely used;
  • High mass density of hydrogen storage, more than 20% higher than the three-type bottle;
  • Low weight, three type bottle liner weight is larger;
  • The cost is lower than the three-type bottle products, and theinner liner material is different;
  • The fatigue performance is good, and the fatigue life is more than 2 times longer than that ofthe three-type bottle
  • The product with the same diameter and volume has small weight, low weight ratio and good economic benefit



Cylinder Modeland Standard Norminal Working Pressure(Mpa) Water Capacity
(L)
Diameter
(mm)
Testing pressure Design lifespan Length
(mm)
Weight
(kg)
Hydrogen density Inner diameter
CHG4-390-60-70-T/B1 70 60 390 105 15 860 42 5.5 347
CHG4-445-185-70-T/B1 70 185 445 105 15 1862 124 5.7 395
CHG4-445-210-70-T/B1 70 210 445 105 15 2109 136 5.9 395
CHG4-625-422-70-S/B1 70 422 625 105 15 2195 250 6.5 550

steel gas cylinder



Product principle ofvehicle hydrogen supplysystem

It is composed of carbon fiber fully wound hydrogen storagebottle, combined bottle valve, filling port, pressure reducingvalve,pressure/temperature sensor, etc.

NorminalWorkingPressure:350bar/700bar

Outlet pressure:2.5-20bar(adjustable)



steel gas cylinder



Vehicle hydrogensupplysystem product parameters

Model number

 Pressure rating

(Mpa)

Number of cylinders

(only)

Cylinder volume

(L)

Gas storage capacity(kg)

Operating temperature(°c)

LD02v100A 35 2 100 6.3 -40~85
LD02v210A 35 2 210 13.3 -40~85
LD03v166A 35 3 166 15.7 -40~85
LD04v166A/B 35 4 166 15.7 -40~85
LD06v166A/B/C 35 6 166 31.4 -40~85
LD08v166A/B 35 8 166 41.9 -40~85
LD10v166B 35 10 166 52.3 -40~85
LD12v166B 35 12 166 62.8 -40~85
LD04v140A/B 35 4 140 17.7 -40~85
LD06v140A/B/C 35 6 140 26.5 -40~85
LD08v140A/B 35 8 140 35.3 -40~85
LD10v140A/B 35 10 140 44.1 -40~85
LD12v140A/B 35 12 140 53 -40~85
LD14v140A 35 14 140 61.8 -40~85
LD02v68v28A 70 2 68/27 8.6 -40~85
LD06v134A/B/C 70 6 134 50.7 -40~85
LD08v134A/B 70 8 134 67.6 -40~85
LD10v134B 70 10 134 84.5 -40~85



Quality Control

Our products have ISO 11439, ISO11119, ISO9089, UN ISO9809, ECE R110, EN11245 and other international certificates, as well as the company's own ISO9001 and IATF 16949 and other international quality system certificates. We know that you want to keep improving the quality of your products. We, on the other hand, focus on details, on quality. Because we believe that every smallest step affects the value and quality of the final product.



Certificate of CNG cylinders



Since its establishment over ten years ago, the company has a self-built factory covering an area of 56,000 square meters.  We currently have a workforce of 240 employees, including 50 senior technical and management personnel.  Additionally, we possess the production capacity to manufacture 300,000 various types of gas cylinders per year, as well as 9,000 sets of CNG framework assemblies and gas supply systems.
