CNG Gas Cylinders for vehicles

Home CNG Gas Cylinders for vehicles

232mm diameter high pressure CNG series cylinders

Diameter 232 mm gas cylinder price
High-pressure cylinders for cars
34kg gas cylinder
gas cylinder

232mm diameter high pressure CNG series cylinders

CNG Type 1 automotive cylinders are carefully designed with the most advanced seamless steel pipe manufacturing process to ensure internal and external pressure balance, thus providing excellent durability and safety performance.

  • Customized water volume and standard :

    30L/35L/40L/50L/60L (ECE R110)
  • Norminal Working Pressure (Bar) :

    200
  • Hyd.test Pressure(Bar) :

    300
  • Material :

    34CrMo4
  • Diameter(mm) :

    232
  • Bottom Shape :

    Convex

CNG TYPE 1 GAS CYLINDER

Compressed Natural Gas (CNG) cylinders are used for storage and transportation of natural gas as a fuel for vehicles such as automobiles. CNG cylinders are typically made of high-strength steel or materials, designed to withstand the high pressure of compressed natural gas. The appearance color of automotive cylinders can be chosen based on your market demand; the size of automotive cylinders can be customized to 30-60L according to your market model, and the logos valves can also be customized to meet your market requirements. The cylinders comply with the standards of ECE R110, with a working pressure of 200 bar and a test pressure of 300 bar, using materials such as 34CrMo4.

Implementation standard



Norminal Working

Pressure(Bar)



Hyd.test Pressure

  (Bar)

Design Wall Thickness

(mm)

Material Bottom Shape

Outer Diameter

(mm)

     Water Capacity

(l)

Length(mm) Weight(kg)









  ECE R110









200 300 5.5 34CrMo4 Convex 232 30 925 34.0
35 1060 38.6
40 1195 43.2
50 1465 52.4
60 1735 61.6



Range of Application:

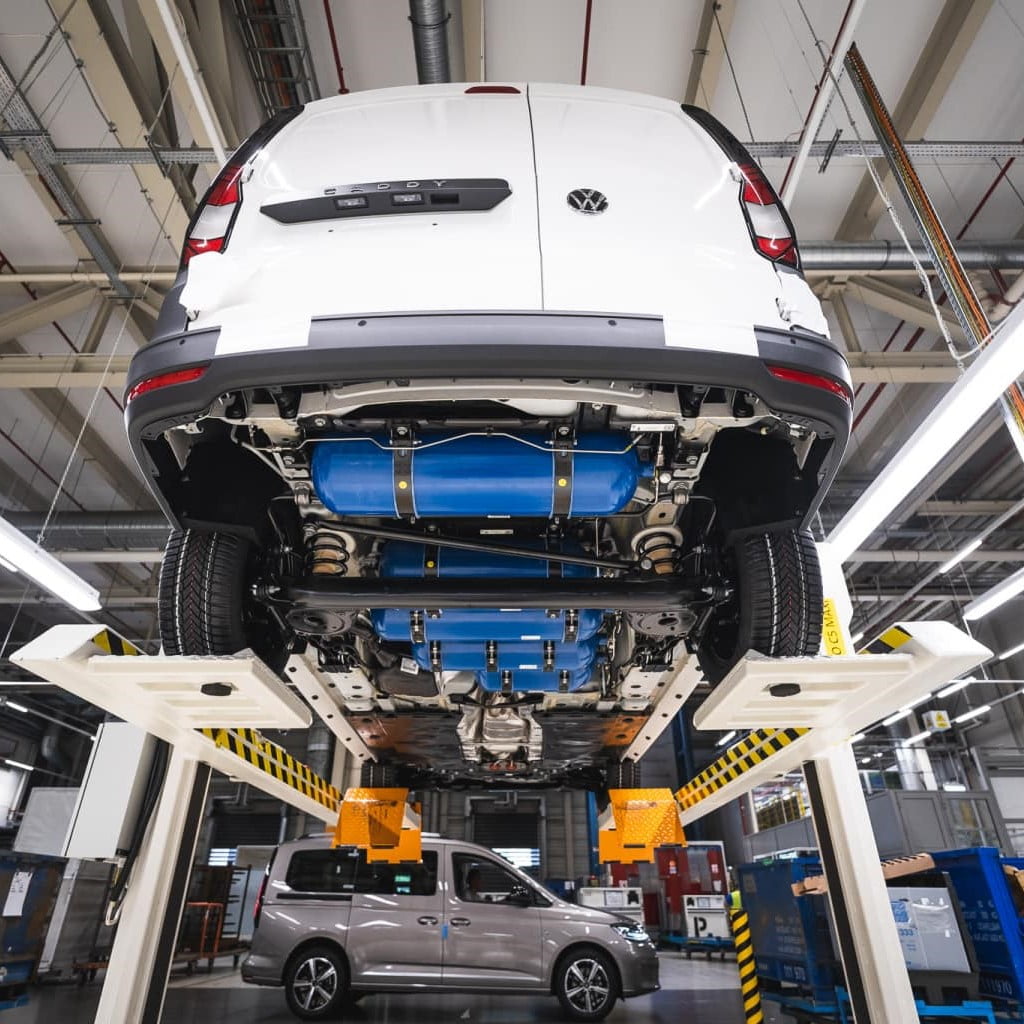

CNG cylinders are suitable for private vehicles, public transport and commercial vehicles. Its application in the field of transportation has been widely recognized and respected. It can not only reduce fuel costs, reduce gas emissions, but also improve the vehicle's driving range and power performance.

cng type 1 gas cylinder


Why Choose Us?

  • Strong production capacity:With a self-built factory covering over 56,000 square meters and employing over 240 staff, the company has the capacity to produce 300,000
  • Direct sales from the source factory:By eliminating foreign trade companies, purchasers can directly access the manufacturer for one-stop procurement
  • 10 years of industry experience:The factory holds IATF 16949 and ISO 9001 quality management system certificates,
  • Customization capability:Our products can be customized according to your preferences, including color, size, thread, and logo.
  • At present, the company has 6 gas cylinder spinning production lines, 3 heat treatment and tempering lines, 2 automatic production lines for machine adding, spraying and winding, and 1 LPG composite gas cylinder production line




CNG Cylinder Product Inspection Display

The factory undergoes multiple cylinder inspections to ensure product safety and reliability, so you can purchase with confidence and use with safety. Each inspection procedure is scientific and rigorous, leaving no room for any negligence. From material selection to production processes, CNG cylinders strive to combine excellent quality with impeccable safety. Every aspect highlights exquisite craftsmanship and quality assurance.



CNG cylinder testing

Quality Control

Our products strictly follow the international standards, with ISO 11439, ISO11119, ISO9089, UN ISO9809, ECE R110, EN11245 and other international certificates, as well as the company's own ISO9001 and IATF 16949 and other international quality system certificates.



Certificate of CNG cylinders



Since its establishment over ten years ago, the company has a self-built factory covering an area of 56,000 square meters.  We currently have a workforce of 240 employees, including 50 senior technical and management personnel.  Additionally, we possess the production capacity to manufacture 300,000 various types of gas cylinders per year, as well as 9,000 sets of CNG framework assemblies and gas supply systems.
