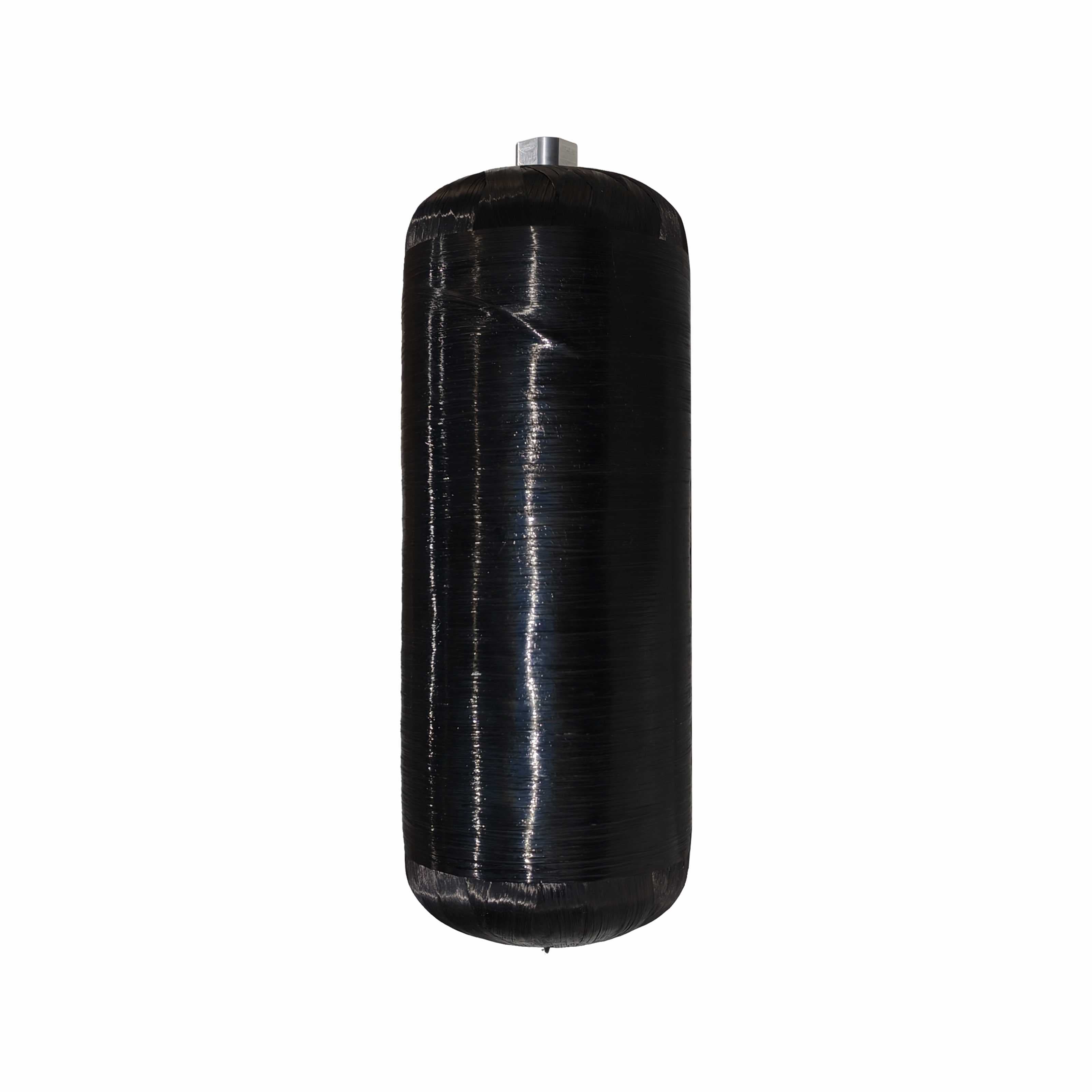

Specifically designed for drones and lightweight applications, this high-pressure hydrogen storage cylinder features advanced full-wrapped technology with a plastic liner. It offers a combination of lightweight design, high safety, and excellent corrosion resistance.
Customized water volume and standard :
5L/9L/12L/20LNorminal Working Pressure (Bar) :
350barDiameter(mm) :
152Weight :
1.8kgLiner Materia! :
HDPESpecifically designed for drones and lightweight applications, this high-pressure hydrogen storage cylinder features advanced full-wrapped technology with a plastic liner. It offers a combination of lightweight design, high safety, and excellent corrosion resistance. With a 5-liter capacity and a working pressure of 35 MPa, it meets stringent environmental standards, making it an ideal choice for hydrogen-powered drones, portable hydrogen supply systems, and scientific research applications.

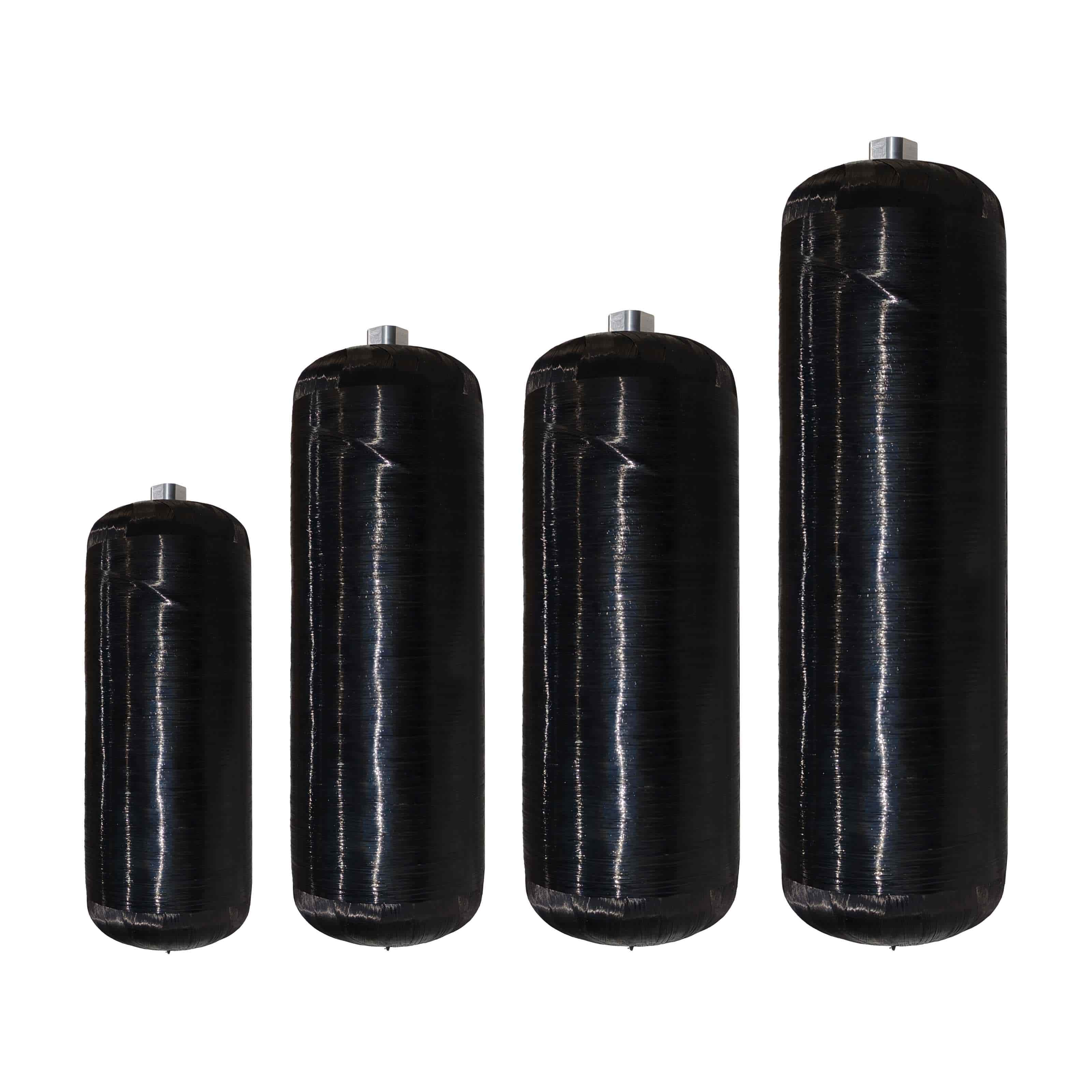

| Type | Liner Material | Cylinder Diamter(mm） | Capacity(L) | Nominal Length(mm) | Nominal Weight(kg) | Working Pressure(Mpa) |
| UAV-CHG4-142-5-35T | HDPE | 152 | 5 | 420 | 1.8 | 35 |
| UAV-CHG4-169-9-35T | 175 | 9 | 560 | 2.8 | ||
| UAV-CHG4-182-12-35T | 196 | 12 | 577 | 3.4 | ||
| UAV-CHG4-206-20-35T | 220 | 20 | 730 | 6.5 |
Key Advantages
Ultra-Lightweight Design
Weighing only 1.8 kg, it significantly enhances drone endurance and payload capacity, with a superior thrust-to-weight ratio compared to traditional metal cylinders.
High Strength and Safety

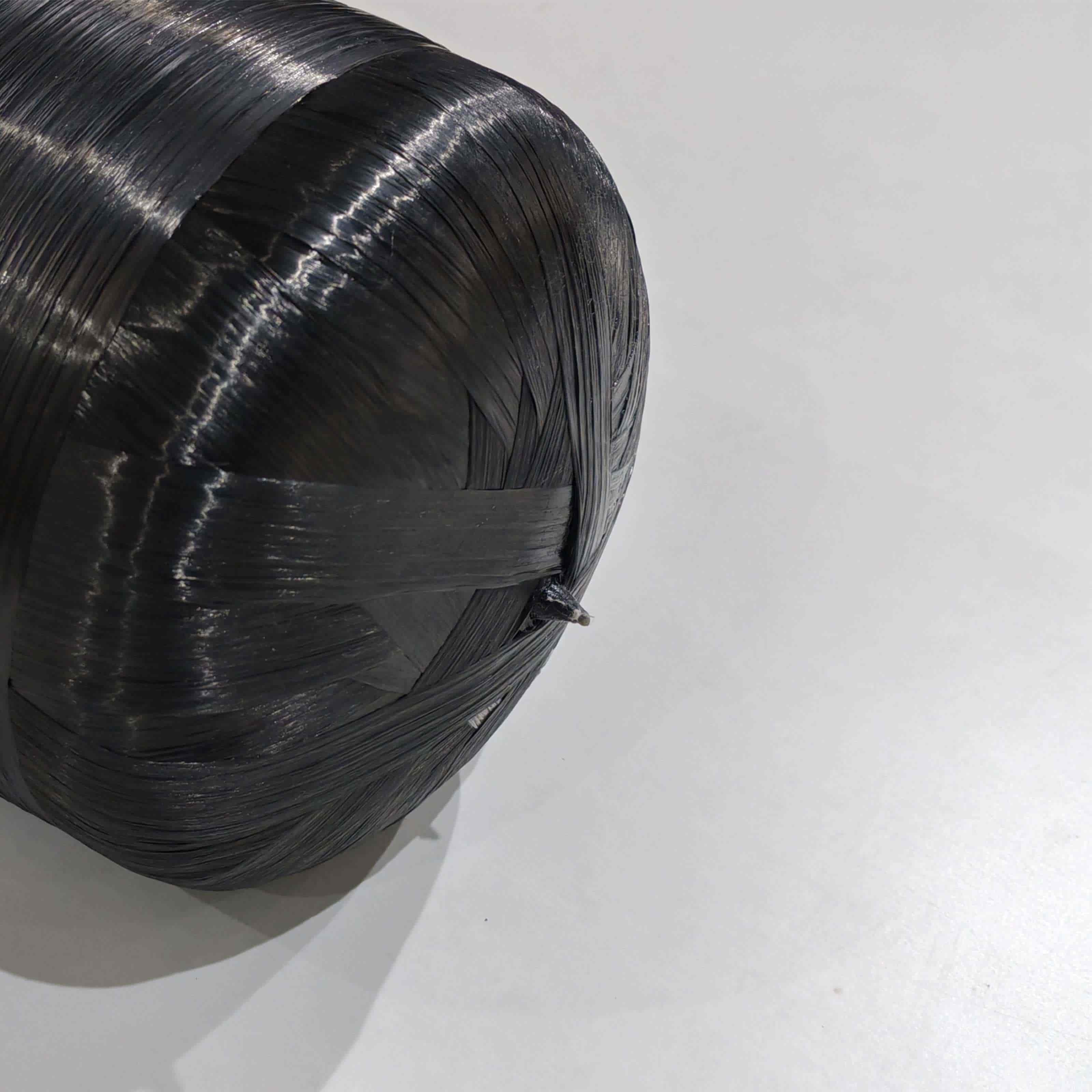

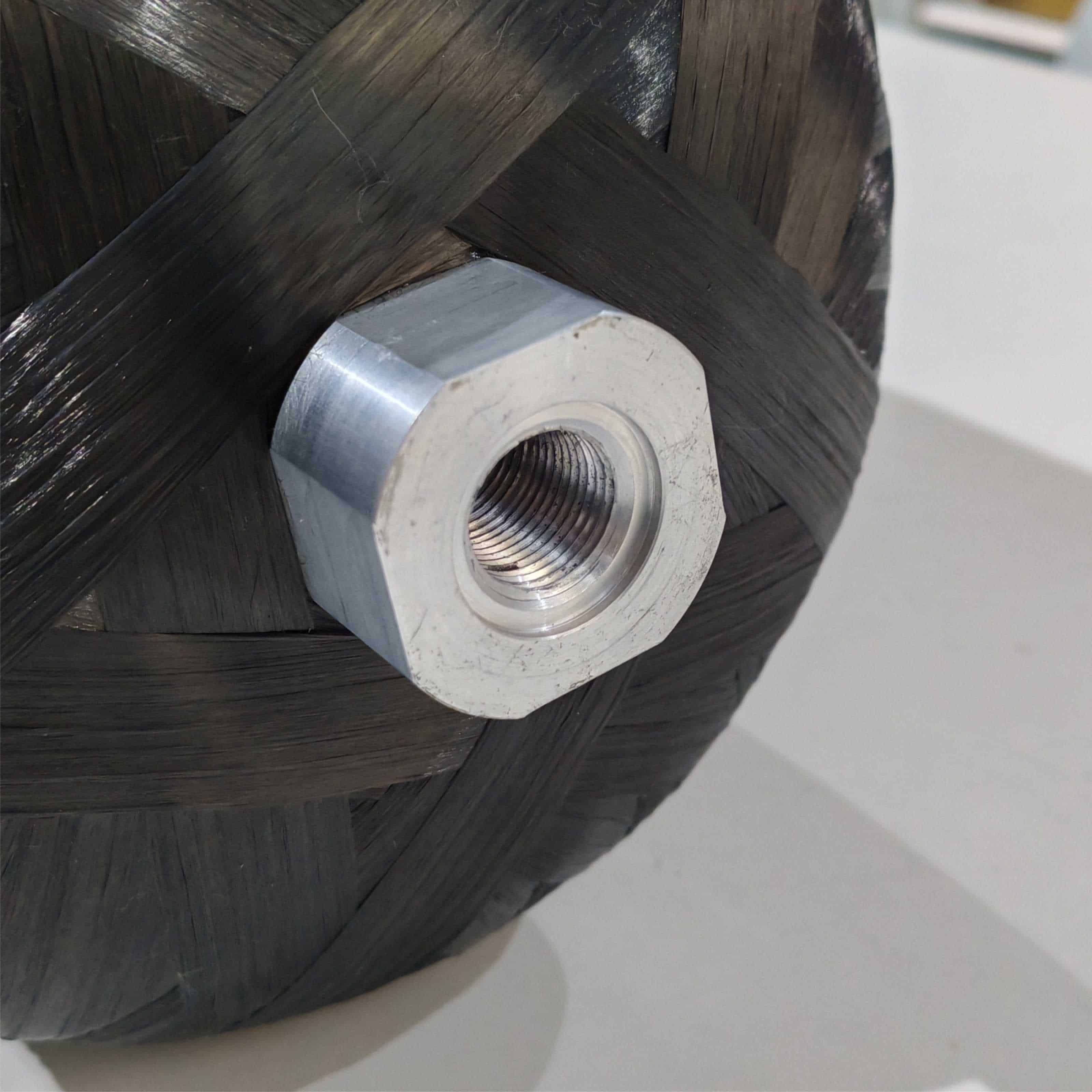

Utilizing full carbon fiber wrapping, the cylinder passes a 52.5 MPa burst pressure test—well above the 35 MPa working pressure requirement.
The plastic liner is resistant to hydrogen embrittlement and corrosion, with no risk of metal leaching.
Wide Temperature Adaptability
Stable performance across extreme environments, from -40°C cold to 80°C heat, making it suitable for use in plateaus, deserts, and other harsh conditions.
Drone-Specific Optimization

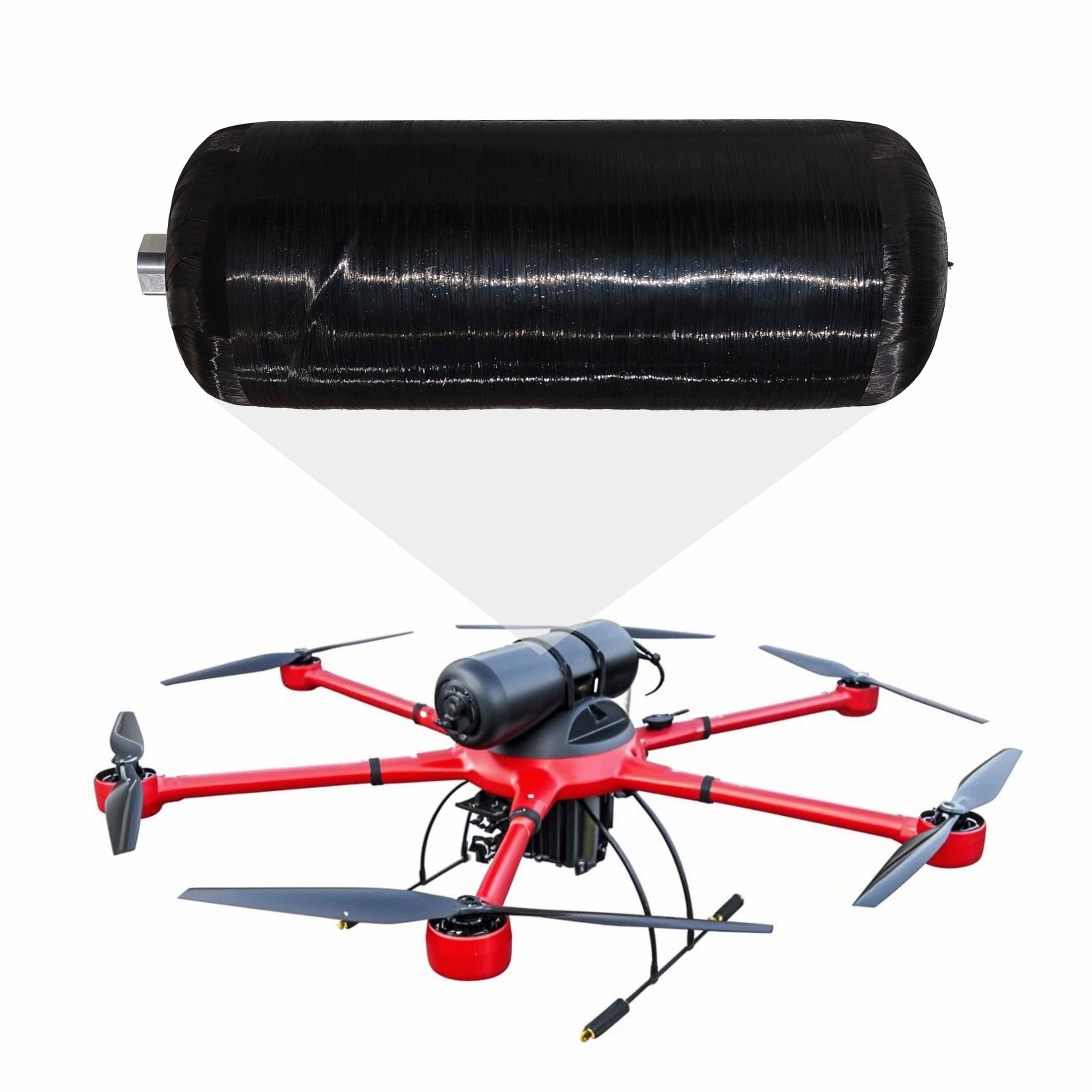

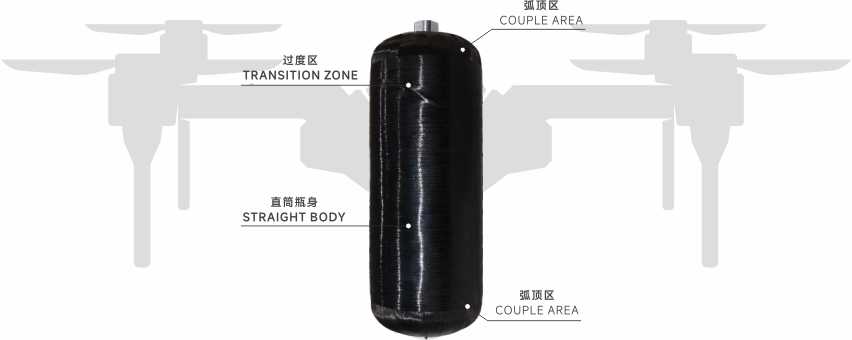

Compact dimensions (152 mm diameter × 420 mm length) are tailored to fit the fuselage layouts of multirotor and fixed-wing drones.
Application Scenarios：

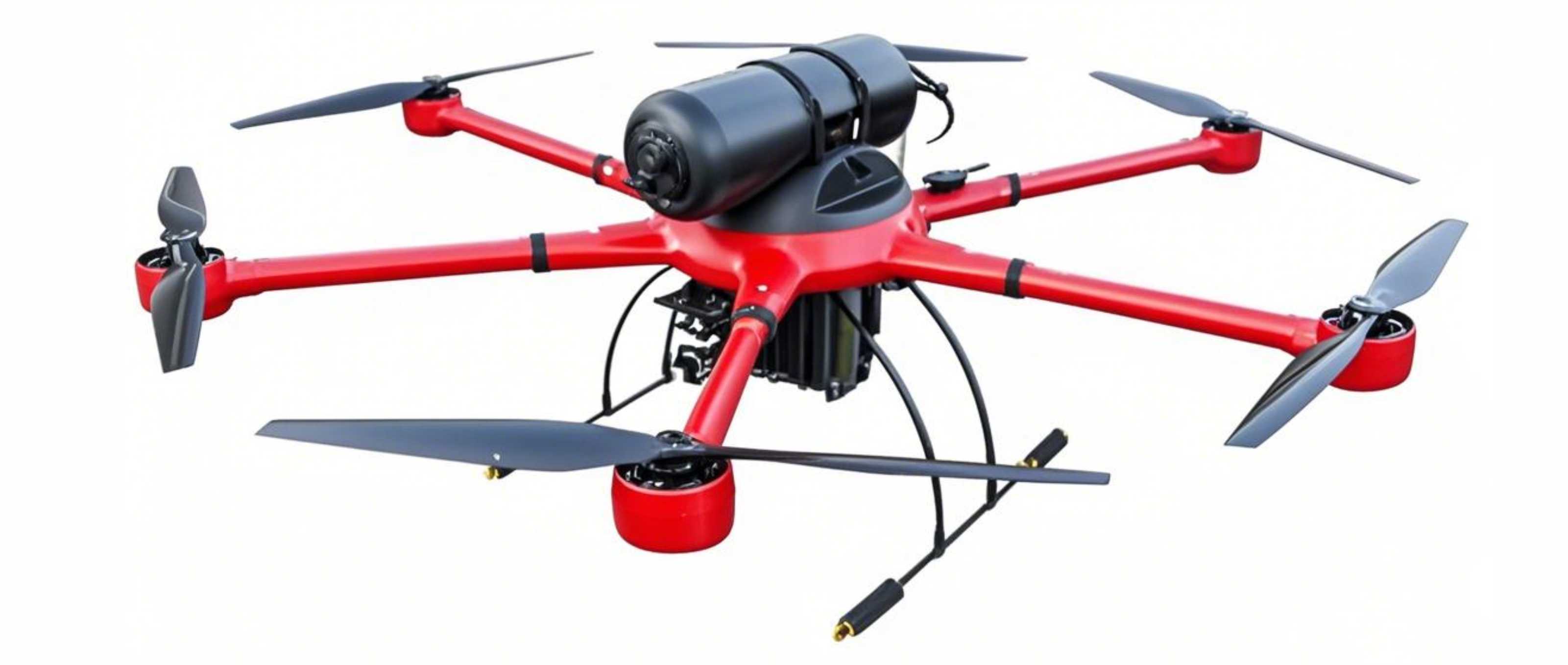

✔ Hydrogen-Powered Drones: Long-endurance inspection, logistics delivery, agricultural spraying
✔ Mobile Hydrogen Supply Systems: Field research, emergency power supply
✔ Aerospace Testing: Hydrogen fuel system validation for lightweight aerial vehicles
✔ Education and Research: Experimental demonstrations in new energy technologies
