π 520L Type 2 CNG Cylinder Cascade: Optimized Storage for Heavy-Duty Trucks

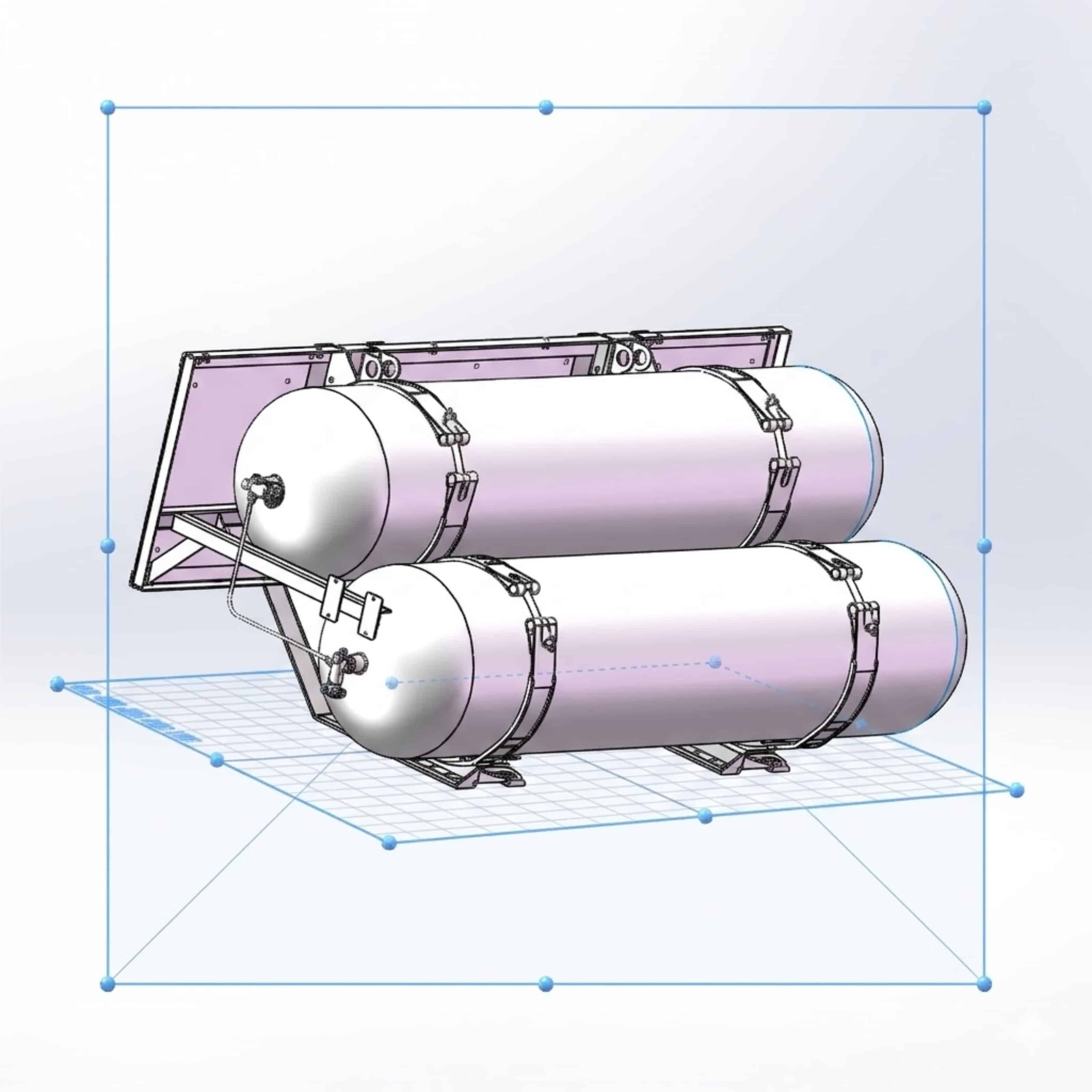

The Type 2 CNG cylinder cascade has now been completed. Comprising two 260L cylinders, it features a total capacity of 520L, a total weight of 505 kg, and overall dimensions of 2262 × 815 × 868 mm.
Customized water volume and standard :
2*260LNorminal Working Pressure (Bar) :
200Diameter(mm) :
2262*815*868mmGas cylinder assembly
|
Bundles Water Capacity(L)
|
No.of cylinders(pcs)
|
Gas Capacity
οΌ20β/20MpaοΌm³
|
Norminal Working
Pressure(bar)
|
Cylinder Outer
Diameter(mm)
|
Cylinder
Water
Capacity(L)
|
Bunddles
G.Weight(kg)
|
| 410 | 2 | 82 | 200 | 406 | 205 | 450.00 |
| 820 | 4 | 164 | 200 | 406 | 205 | 780.00 |
| 1230 | 6 | 246 | 200 | 406 | 205 | 1200.00 |
| 1845 | 9 | 369 | 200 | 406 | 205 | 1800.00 |
| 2460 | 12 | 492 | 200 | 406 | 205 | 2400.00 |
| 3280 | 16 | 656 | 200 | 406 | 205 | 2650.00 |
| 6560 | 32 | 1312 | 200 | 406 | 205 | 6400.00 |
| 9840 | 48 | 1969 | 200 | 406 | 205 | 9500.00 |
| 13120 | 64 | 2624 | 200 | 406 | 205 | 12500.00 |
| 260 | 1 | 520 | 200 | 416 | 260 | 240.00 |
| 1040 | 4 | 208 | 200 | 416 | 260 | 865.00 |
| 2080 | 8 | 416 | 200 | 416 | 260 | 1500.00 |
| 260 | 1 | 52 | 200 | 426 | 260 | 290.00 |
| 1040 | 4 | 208 | 200 | 426 | 260 | 1065.00 |
| 2080 | 8 | 416 | 200 | 426 | 260 | 1985.00 |

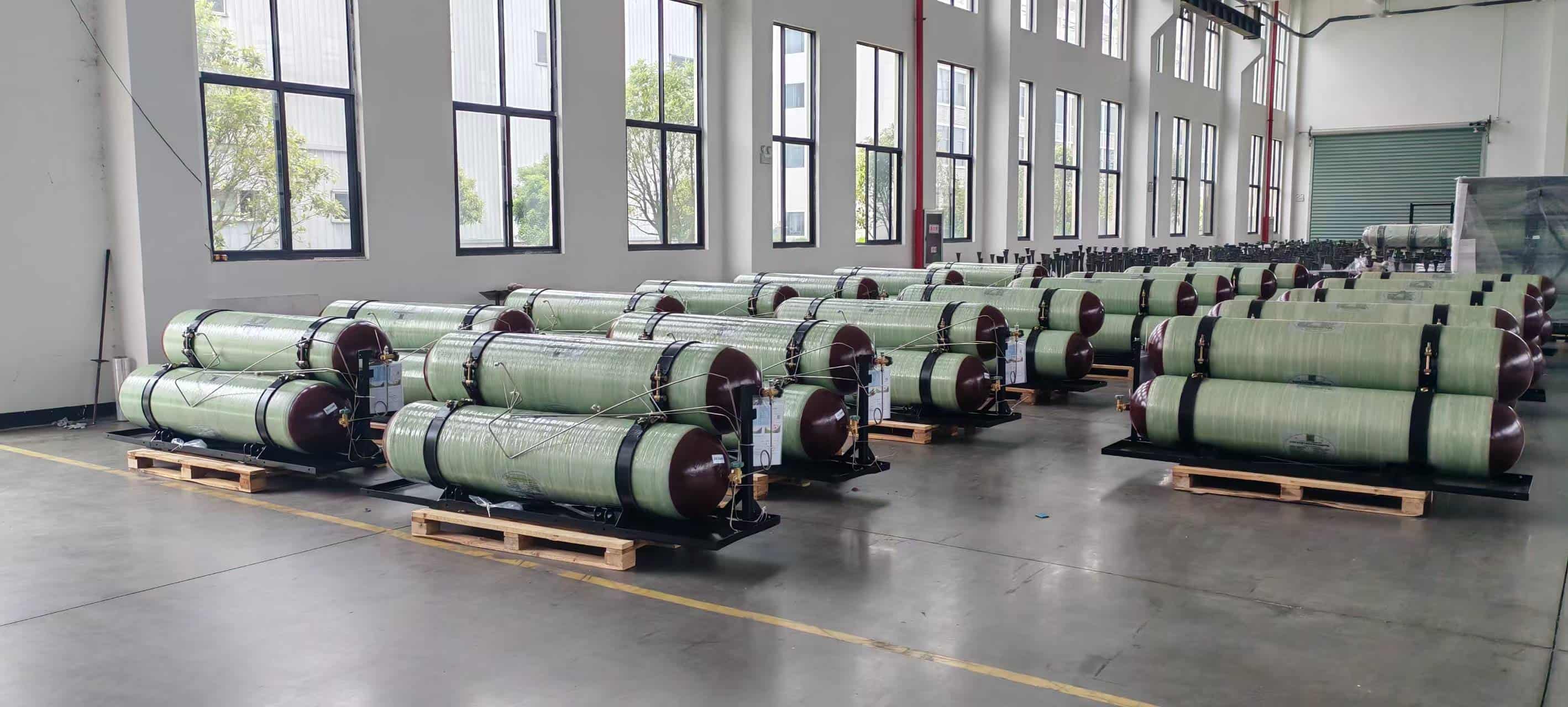

Are you looking for a reliable, high-performance CNG storage solution for your fleet? We are excited to showcase our latest batch of 520L CNG Type 2 Cascade Systems, fresh off the production line and ready for global shipment! ππ¨
π οΈ Technical Excellence & Specifications
Specifically engineered for high-pressure natural gas storage, this dual-cylinder cascade combines a lightweight build with uncompromising safety standards.
Total Volume: 520L (Consists of 2 × 260L Units) π§
Total Weight: 505 kg (Lightweight design for better fuel efficiency)
Dimensions: 2262 × 815 × 868 mm (Compact and easy to install) π
Working Pressure: 200 Bar (3,000 PSI) β‘
Cylinder Type: Type 2 (Steel liner with glass fiber hoop wrapping)
π€ Strategic Partner Choice

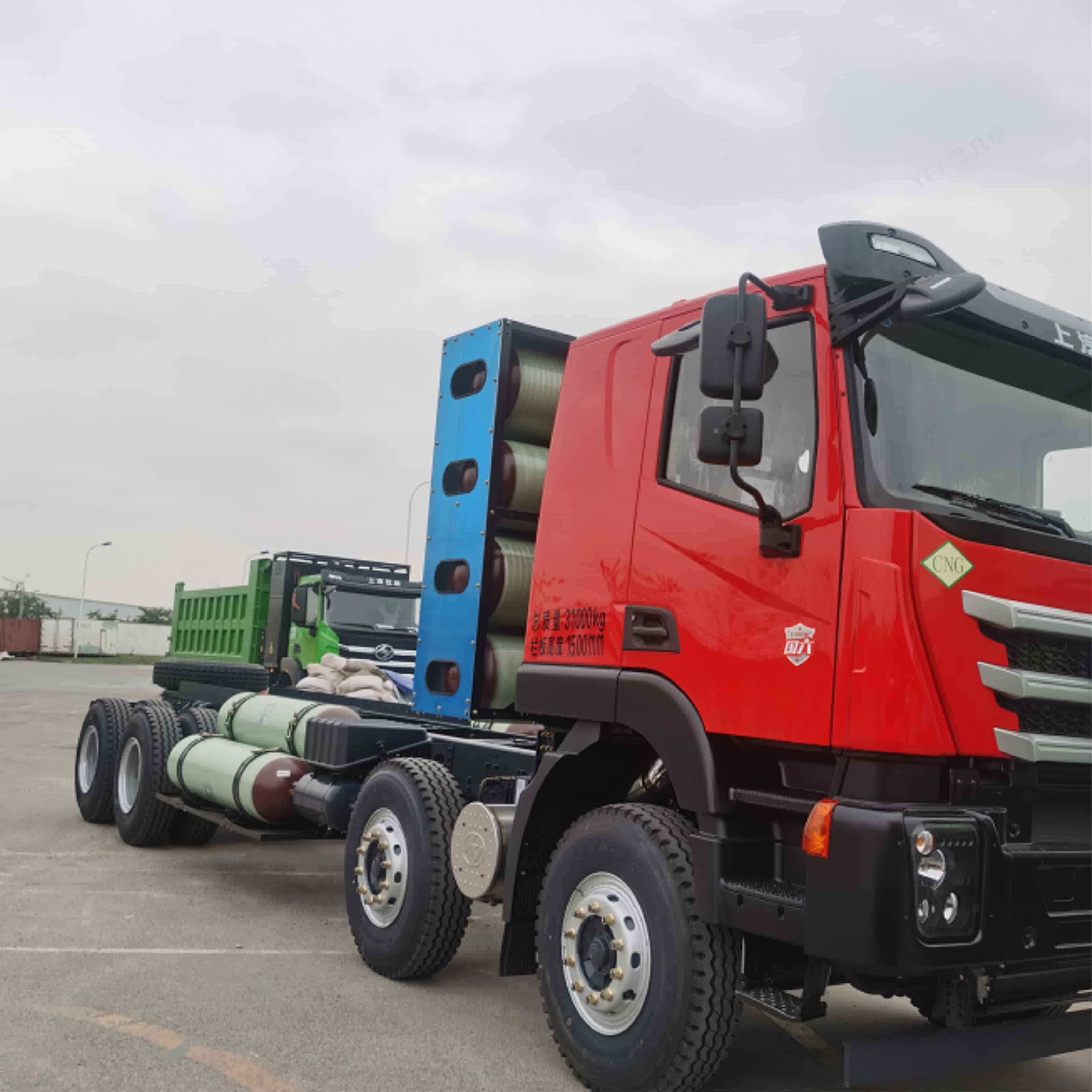

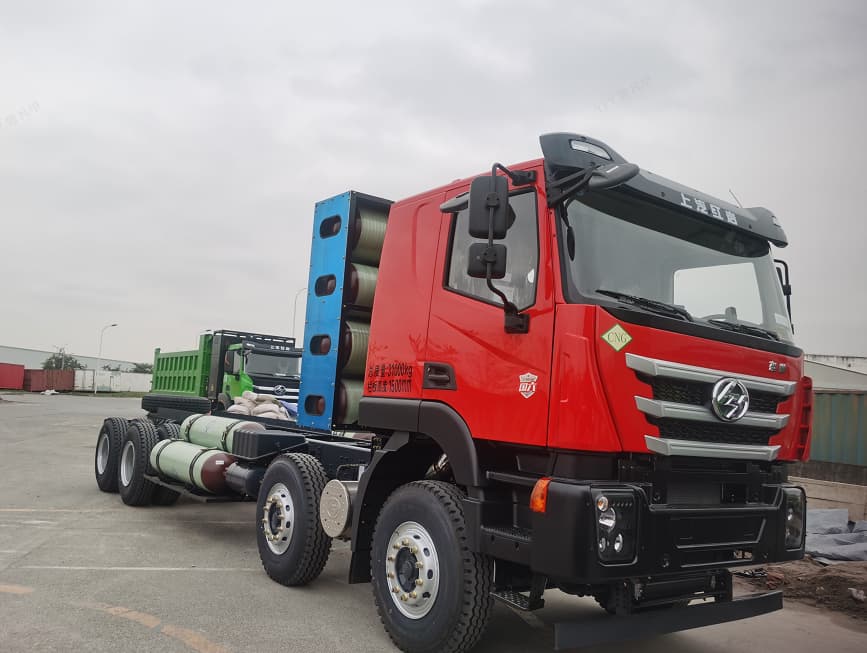

This specific configuration is a trusted choice for major automotive manufacturers. We are proud to supply these cascades to industry leaders such as Dongfeng Liuzhou Motor (LZH) and SAIC Hongyan, ensuring their clean energy vehicles perform at peak efficiency in the most demanding conditions. ποΈβ¨
π Certified Safety & Quality
Safety is our top priority. Our cylinders are manufactured to meet and exceed international regulations. Depending on your market requirements, we offer dual certification options:
ECE R110 (International standard for CNG vehicles)
ISO 11439-2013 (Global standard for high-pressure gas cylinders)
π Drive the Future of Green Logistics
By choosing our glass fiber reinforced Type 2 cascades, you reduce vehicle deadweight compared to traditional Type 1 steel tanks, allowing for higher payloads and reduced operational costs. Perfect for long-haul logistics and bus transit systems. ππ±
Interested in high-pressure gas storage for your project?
Whether you need standard cascades or customized configurations, our team is ready to provide technical support and competitive pricing.
π© Contact us today for more details and a formal quote!
CNG type 1 cylinders are a commonly found type of cylinders in natural gas industry. They are primarily for storing compressed natural gas and adhere to strict quality standards.
CNG Type 1 cylinders are high-pressure cylinders specially designed for the storage of compressed natural gas, carefully designed and rigorously manufactured to ensure excellent durability and safety. The cylinder adopts the most advanced seamless steel pipe manufacturing process to balance the pressure inside and outside the cylinder, which greatly improves the safety performance and reliability of the cylinder.
Our Steel cng cylinder for vehicles(CNG-1) are produced from seamless steel tubes by applying the most advanced forming technology, Hot-rotary Spinning, with this technology we can guarantee the cylinder length tolerance more accurately within 5-10mm.
CNG Type 1 automotive cylinders are carefully designed with the most advanced seamless steel pipe manufacturing process to ensure internal and external pressure balance, thus providing excellent durability and safety performance.
Our Steel cng cylinder for vehicles(CNG-1) are produced from seamless steel tubes by applying the most advanced forming technology, Hot-rotary Spinning, with this technology we can guarantee the cylinder length tolerance more accurately within 5-10mm.
CNG Type 1 cylinders are high-pressure cylinders specially designed for the storage of compressed natural gas, carefully designed and rigorously manufactured to ensure excellent durability and safety. The cylinder adopts the most advanced seamless steel pipe manufacturing process to balance the pressure inside and outside the cylinder, which greatly improves the safety performance and reliability of the cylinder.
CNG Type 1 cylinders are one of the key equipment for storing compressed natural gas. They are usually made of high-strength materials to ensure safe storage and utilization of natural gas.
CNG cylinders are compressed natural gas cylinders. High safety performance Due to the storage of high-pressure gas, cylinder design, manufacturing and inspection have strict standards to ensure safe use.
