CNG Gas Cylinders for vehicles

Home CNG Gas Cylinders for vehicles

Cng composite cng type 4 hot sale cng gas cylinders for vehicle

Wrapped Fiberglass Composite Gas CylinderWrapped Fiberglass Composite Gas Cylinder
Carbon Fiber Cylinder Type 4
Type 4 Composite Cylinder

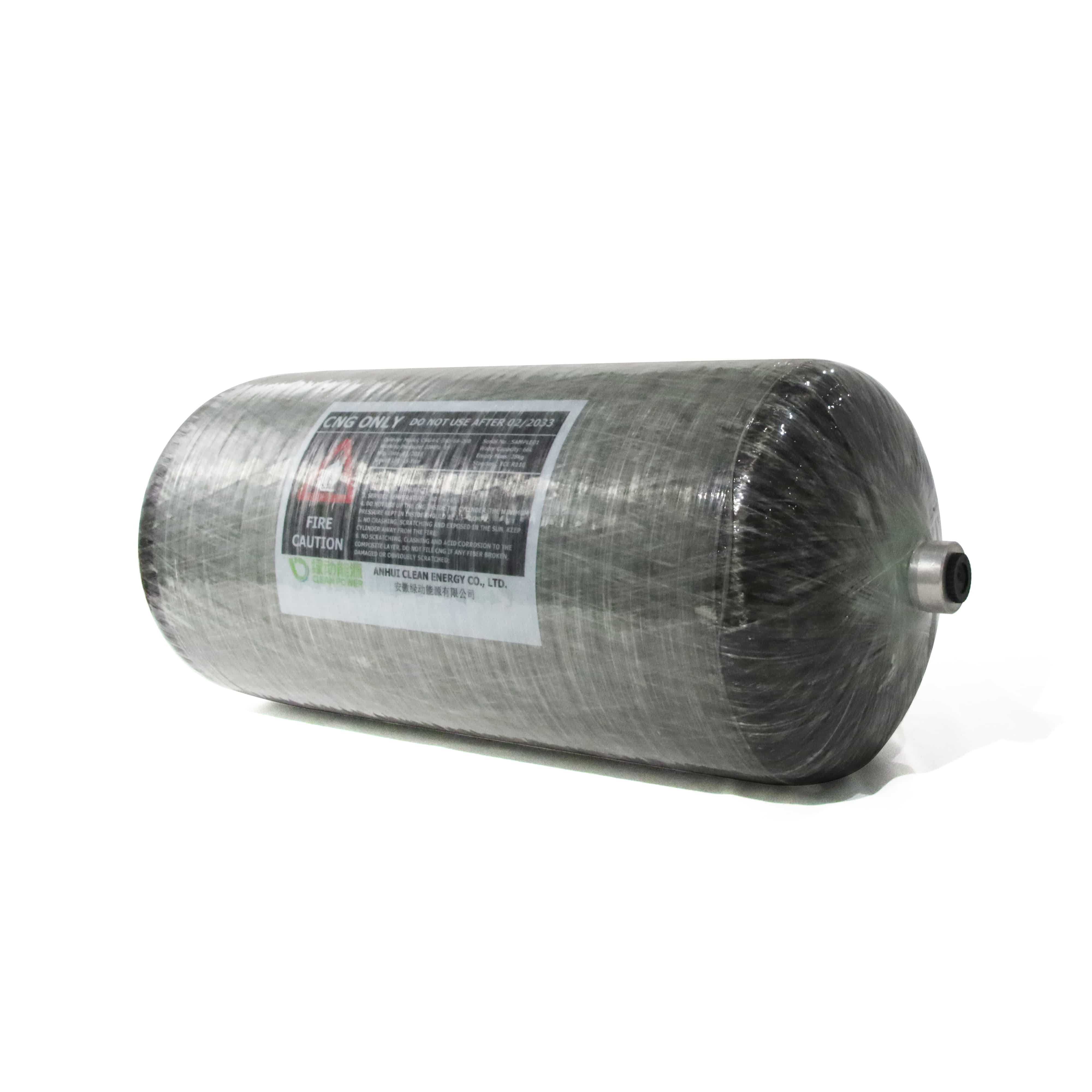

Cng composite cng type 4 hot sale cng gas cylinders for vehicle

CNG Type 4 cylinders have high pressure resistance and tightness, which can safely store and transport CNG.

  • Customized water volume and standard :

    115L(ECER 110)
  • Norminal Working Pressure (Bar) :

    200
  • Hyd.test Pressure(Bar) :

    300
  • Material :

    HDPE
  • Diameter(mm) :

    452
  • Weight :

    48KG

CNG TYPE 4 GAS CYLINDER

Our steel cylinders are produced from seamless steel tubes by applying advanced rotary forming (Hot Spinning) technology-with this technology we can gaurantee the cylinder length torlerance within 10mm . Every cylinder we produced shall be Magnetic Test and UItrasonic Inspection for 100% NDE check. Hydraulic and Airleakage Test are also 100% guarateed



Implementation standard



Norminal Working

Pressure(Bar)



Hyd.test Pressure

  (Bar)

Design Wall Thickness

(mm)

Material

Outer Diameter

(mm)

     Water Capacity

(l)

Length(mm) Weight(kg)

ECE R110

ISO 11439-2013

200 300 9.8 HDPE 452 115 1065 48.00



Product advantage

  • Corrosion-free liner Plastic liner does not produce stress corrosion and hydrogen embrittlement
  • High fatigue life up to 45,000 times
  • High safety performance strong impact resistance
  • Supporting flexible products with the same diameter and volume shorter length, can meet the needs of different models of installation space
  • The product with the same diameter and volume has small weight, low weight ratio and good economic benefit

cng type 4 gas cylinder

.


Why Choose Us?

  • Strong production capacity:With a self-built factory covering over 56,000 square meters and employing over 240 staff, the company has the capacity to produce 300,000
  • Direct sales from the source factory:By eliminating foreign trade companies, purchasers can directly access the manufacturer for one-stop procurement
  • 10 years of industry experience:The factory holds IATF 16949 and ISO 9001 quality management system certificates,
  • Customization capability:Our products can be customized according to your preferences, including color, size, thread, and logo.
  • At present, the company has 6 gas cylinder spinning production lines, 3 heat treatment and tempering lines, 2 automatic production lines for machine adding, spraying and winding, and 1 LPG composite gas cylinder production line


Modern Production Technology



CNG Cylinder Product Inspection Display

Through the cylinder to check for many times, we ensure the safety and reliability of the product, let you rest assured to buy and use. Each test procedure is scientifically rigorous and cannot be ignored.



CNG cylinder testing

Quality Control

Our products strictly follow the international standards, with ISO 11439, ISO11119, ISO9089, UN ISO9809, ECE R110, EN11245 and other international certificates, as well as the company's own ISO9001 and IATF 16949 and other international quality system certificates.



Certificate of CNG cylinders



Since its establishment over ten years ago, the company has a self-built factory covering an area of 56,000 square meters.  We currently have a workforce of 240 employees, including 50 senior technical and management personnel.  Additionally, we possess the production capacity to manufacture 300,000 various types of gas cylinders per year, as well as 9,000 sets of CNG framework assemblies and gas supply systems.
